Router table - Storage and dust management

I have equipped my shop with a router table for quite some time now and had set my target on the Jessem router table combo.  My local dealer had combos with the table top, stand and 3HP router.  Had my eyes on the standard kit with the white top, fence, lift and open base.

The router table Kit

Finally had the chance to get one, in an local auction but nailed the Mast-R-Excel kit with a Milwaukee 3 hp router for about 1/2 price of what new would of costed at the time.  Have been really satisfied with the table and router so far and have used for many tasks.  Dust collection is pretty good with the fence, but....    but the dust collection below the table is, as with other opened base router table, pretty bad.   Even with the below the table port of the Mast-R-Excel.  Big chips never gets properly collected by the port below.  So doing so raised panel operation is pretty much a no dust collection, really.  For finer dust, it does an ok job but still having a lot more escaping below.

Storage and dust collection Below

So began the search for storage and dust collection for the below portion of the router table to capture as much dust as possible.  It is not the number of examples that are missing and paralysis by analysis was pretty much going for a little while.  I wanted and still want to gather all the router accessories within the organization that would be build in this cabinet, serving the double duty of storage (bits and other accessories) and with the dust collection aspects of things.  And I did want to work within the confines of the opened base.  Did not want to change that as it still had the advantage of costing zero and had adjustable feet making it easy to change place and making it level with the uneven floor of the garage.

The end result

As mentioned, just too much good ideas available and all very functional.  I wanted to minimise the amount of material that I wanted to buy to retrofit the base and deal with the different issues I mentioned  above. Some Material I had :

• Plywood, different dimensions and thickness that I could play around with

• some hard wood that I could leverage for bit holders and incorporate within the table to store them

  • dealing with some bits that are pretty tall (molding bits for Ogee) and large diameter for raise panels make it some odd storage options

Router table storage

Enclosed router lift

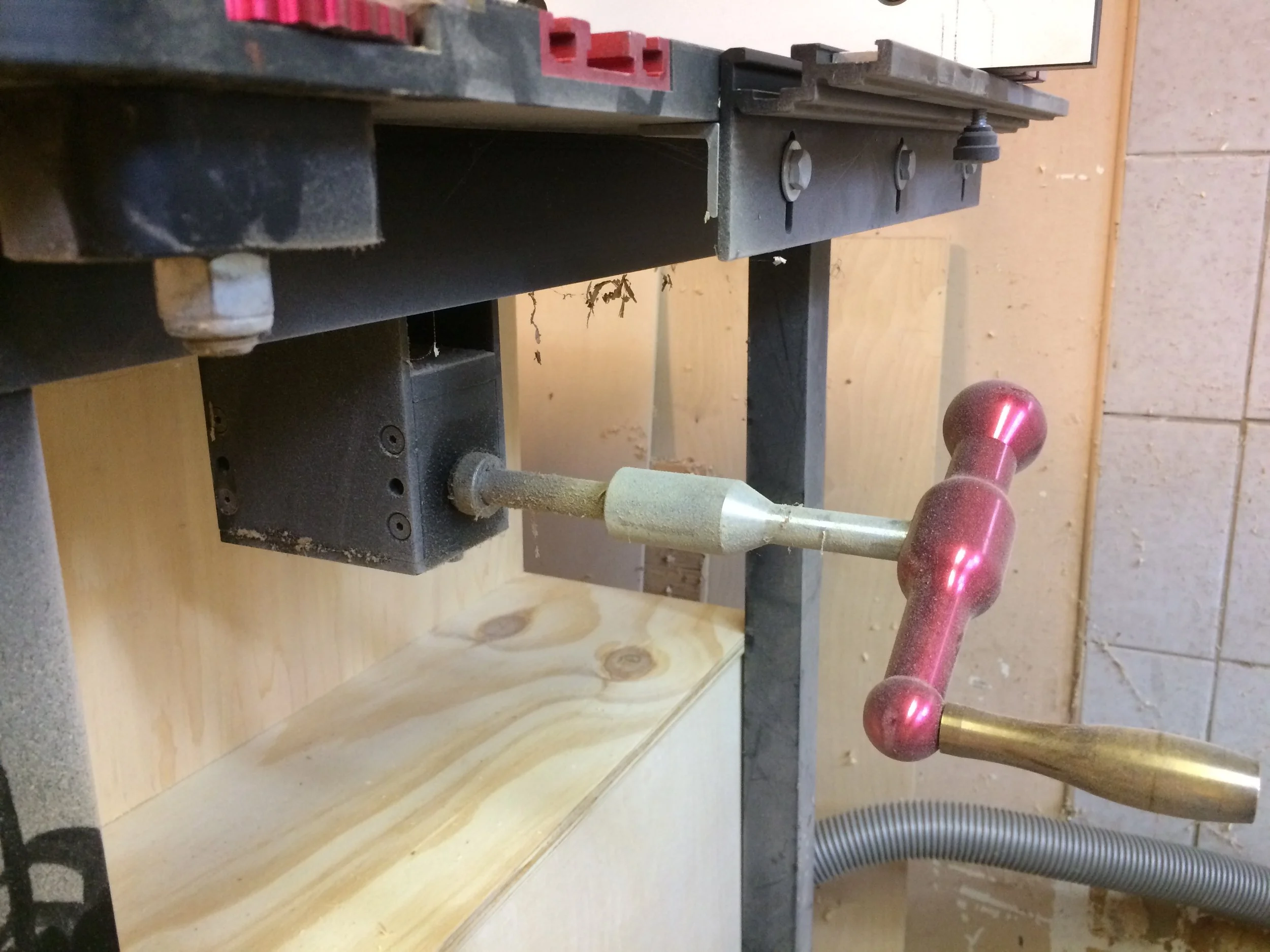

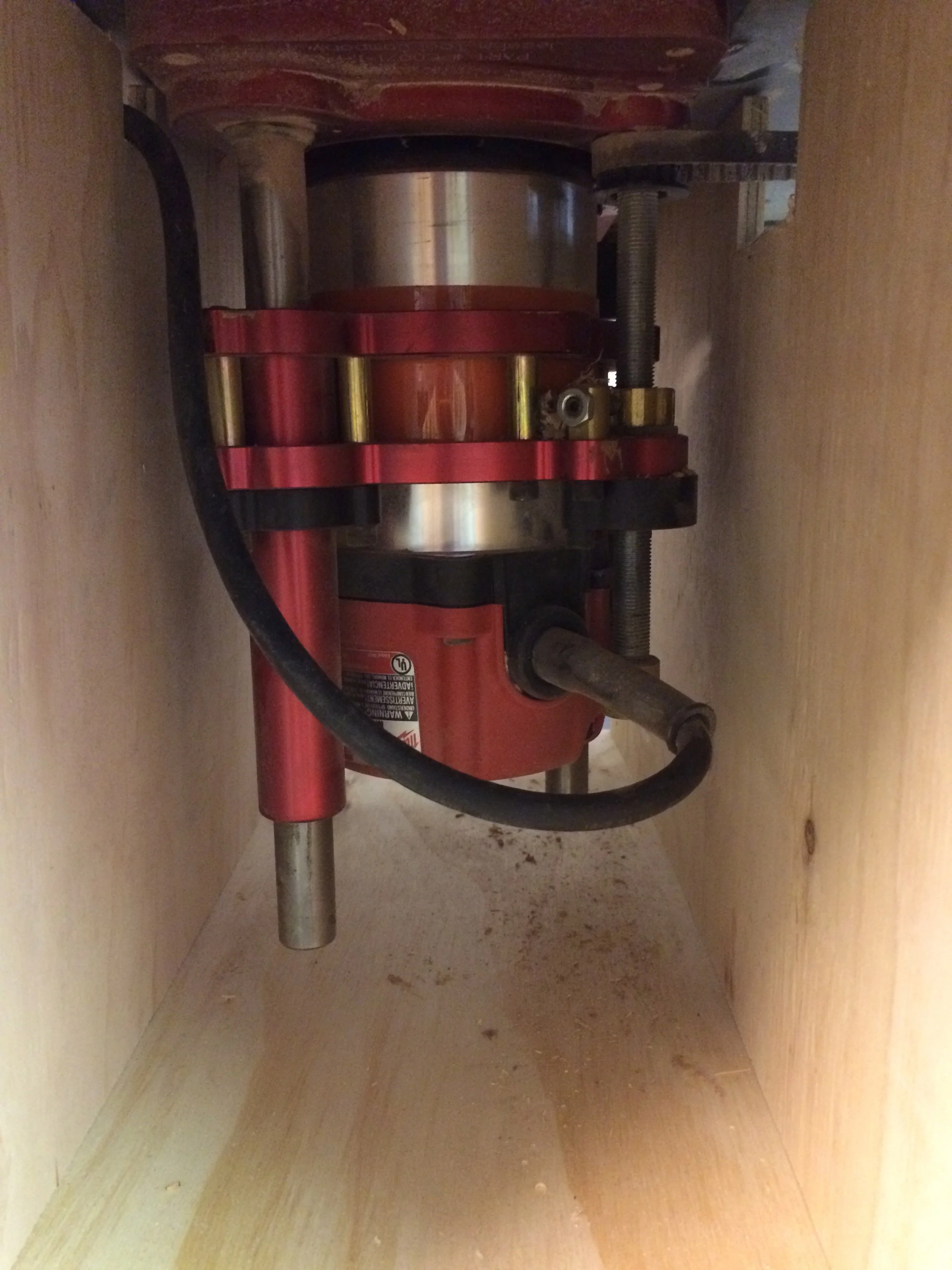

Here is the big picture of the table with rough frame work of the storage. So you can see that the router and lift is enclosed in a compartment.  There will be some piece of plywood in the back with a hole for dust collection.  I will put in another piece in front that will be removable.  Here is a close up shot of the compartment : There is a bigger compartment at the bottom that will be used for storage of the bits and other router related accessories.  It will be sealed in the back with a piece of plywood and in the front, doors will be installed. Here are some other pictures of the router table
